- plastic end piece DN100 for socket or spigot end for use in wall and cabinets, enables pressureless, airtight and removable passage of up to 4 air hoses and 2 cables
- maximum possible:
- 4× 16 mm (outer diameter 21 mm)
- 3× 16 mm + 1× 19 mm (outer diameter 25 mm)
- additional 4 openable ducts diameter 16 mm
- for cables up to max. diameter 9 mm
- includes 2 rubber plugs for unused openings and rubber ring as seal for pipe end Ø 110 mm
- 4× connectors for existing cube connector
- 1× connection for axial fan
- for e.g. collecting pits
- float switch with 10 m cable
- plug-in system
- with buzzer
- float weight and suspension
- for e. g. collecting pits
- float switch with 20 m cable
- plug-in system
- with buzzer
- float weight and suspension
- on mounting rail TS 35
- with grid
- 230 V
- dimensions (in mm): 120 × 120

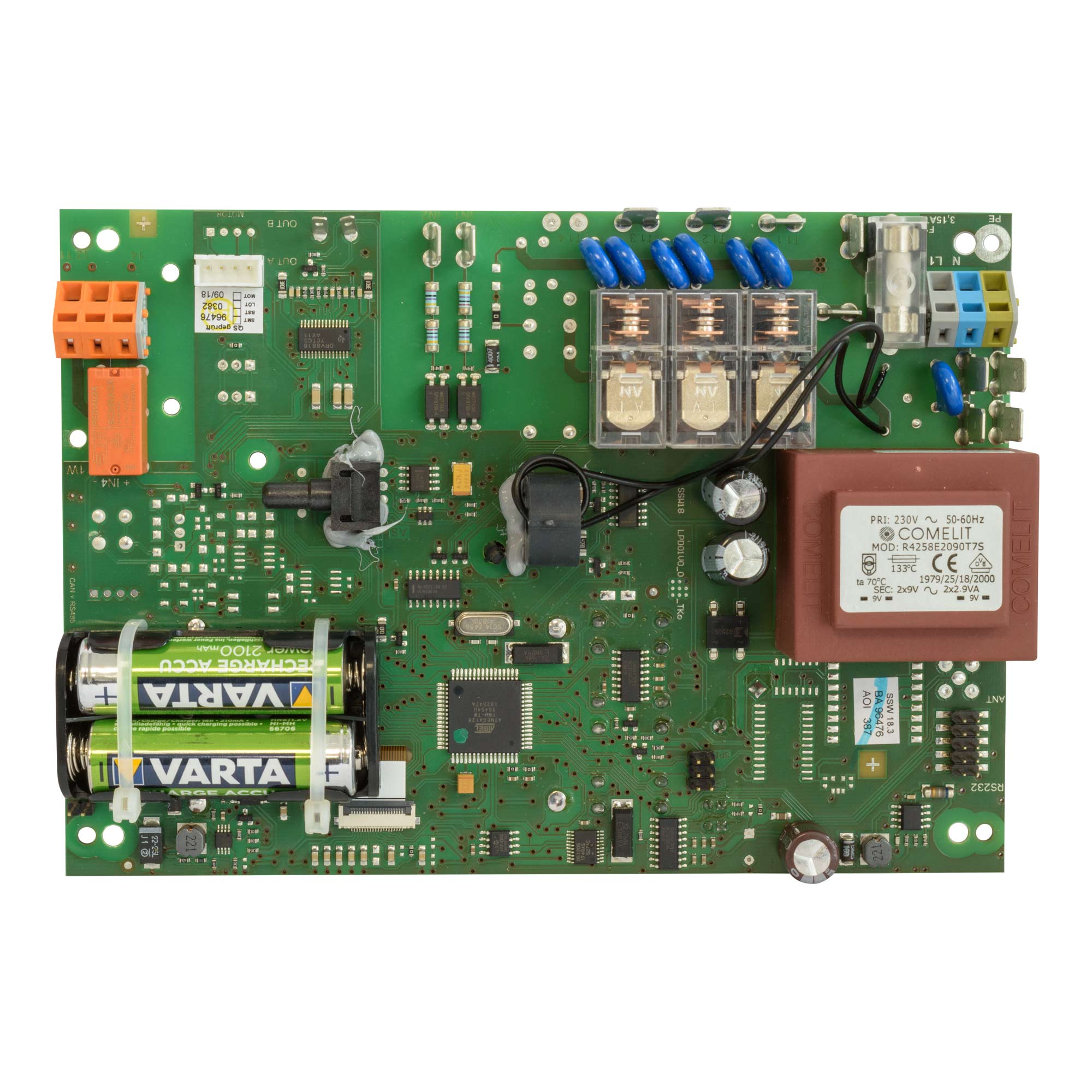

- can be used as a replacement board for the controllers:
- K-Pilot 18.1, K-Pilot 18.3, D-Pilot 18.1 & D-Pilot 18.3
- for AQUATO SSB® plants

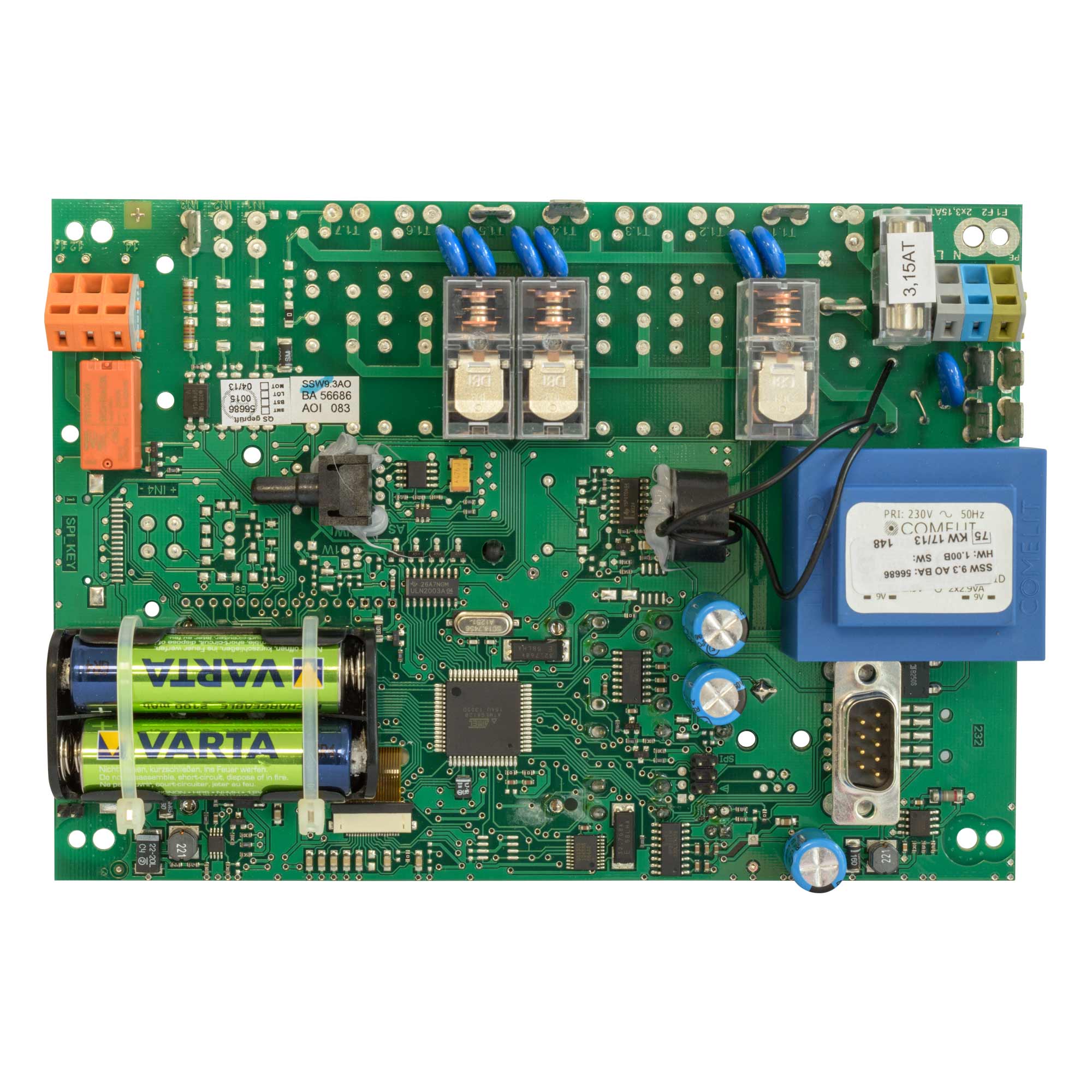

- can be used as replacement board for the controllers:
- K-Pilot STABI KOM 9.3 & D-Pilot 9.3

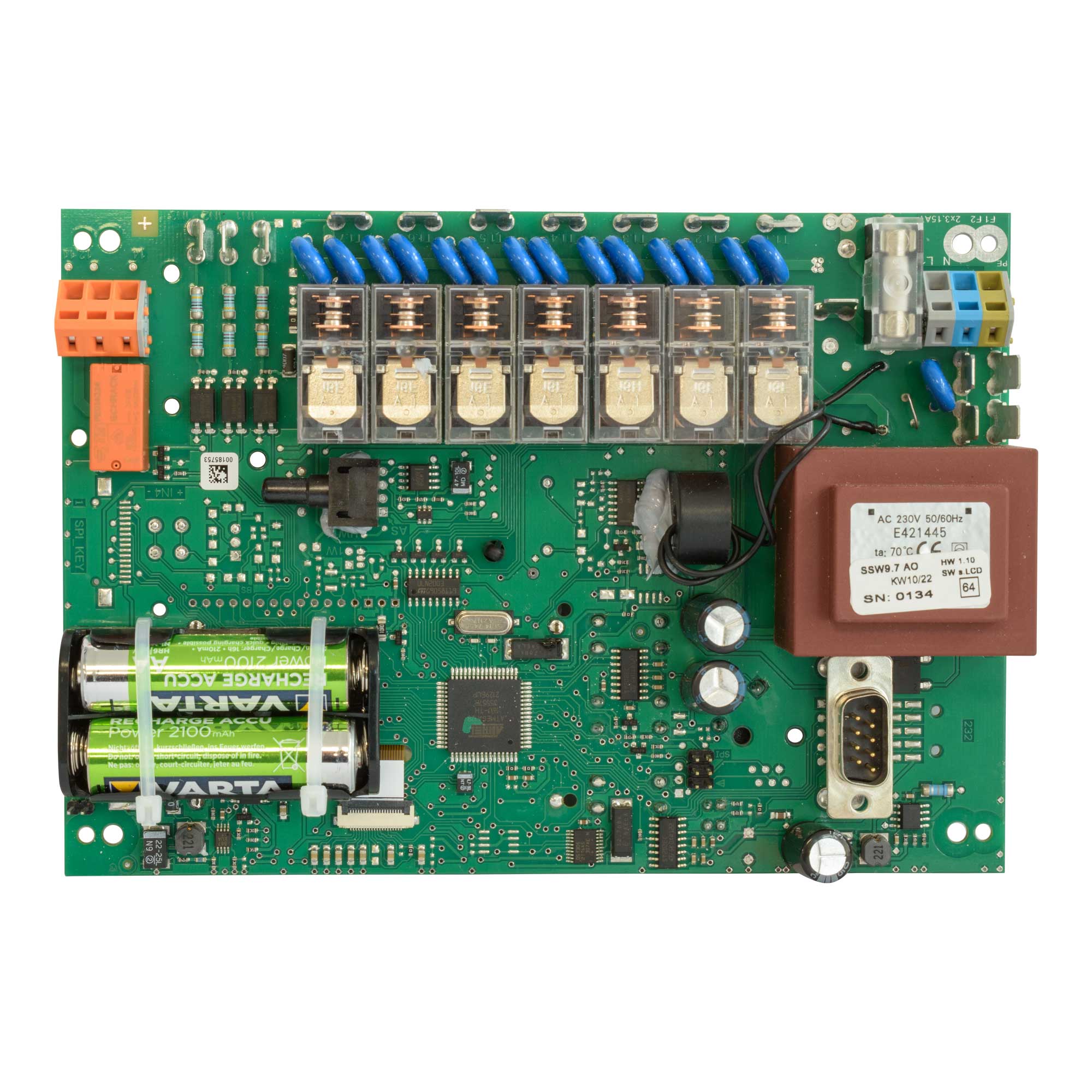

- can be used as a replacement board for the controllers:
- K-Pilot KOM 9.4, K-Pilot KOM 9.5, K-Pilot 9.5, K-Pilot 9.7 & D-Pilot 9.4
- for control unit K-Pilot 18.1/18.3/18.4
- also suitable for D-Pilot
- to connect the compressor to the control
AQUATO® TOPSELLER
- AQUATO® menu structure
- for AQUATO SBR, fixed bed and moving bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- AQUATO® menu structure
- universal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds
- 2 float switch inputs
- 6 individually assignable outputs
- easy connection of existing valves and aggregates
- internal thermostat for control of a cabinet ventilation or heating system
- power failure message as well as current & pressure monitoring
- drain class C, N, D, D+P, D+H, D+P+H
- connection of an additional high water detector
- also suitable for plants of other manufacturers
- 2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,
dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
- submersible up to 12 m deep
- suitable for pumping clean, chemically neutral water
- for use in cisterns and rainwater tanks
- integrated pressure switch for automatically switching the pump on and off
- integrated floating switch as dry-run protection
- housing is supplied without lock, key and without base plate for the compressor
- including fastening set
- connection pipe sideways G 1" male
- without connection cable
