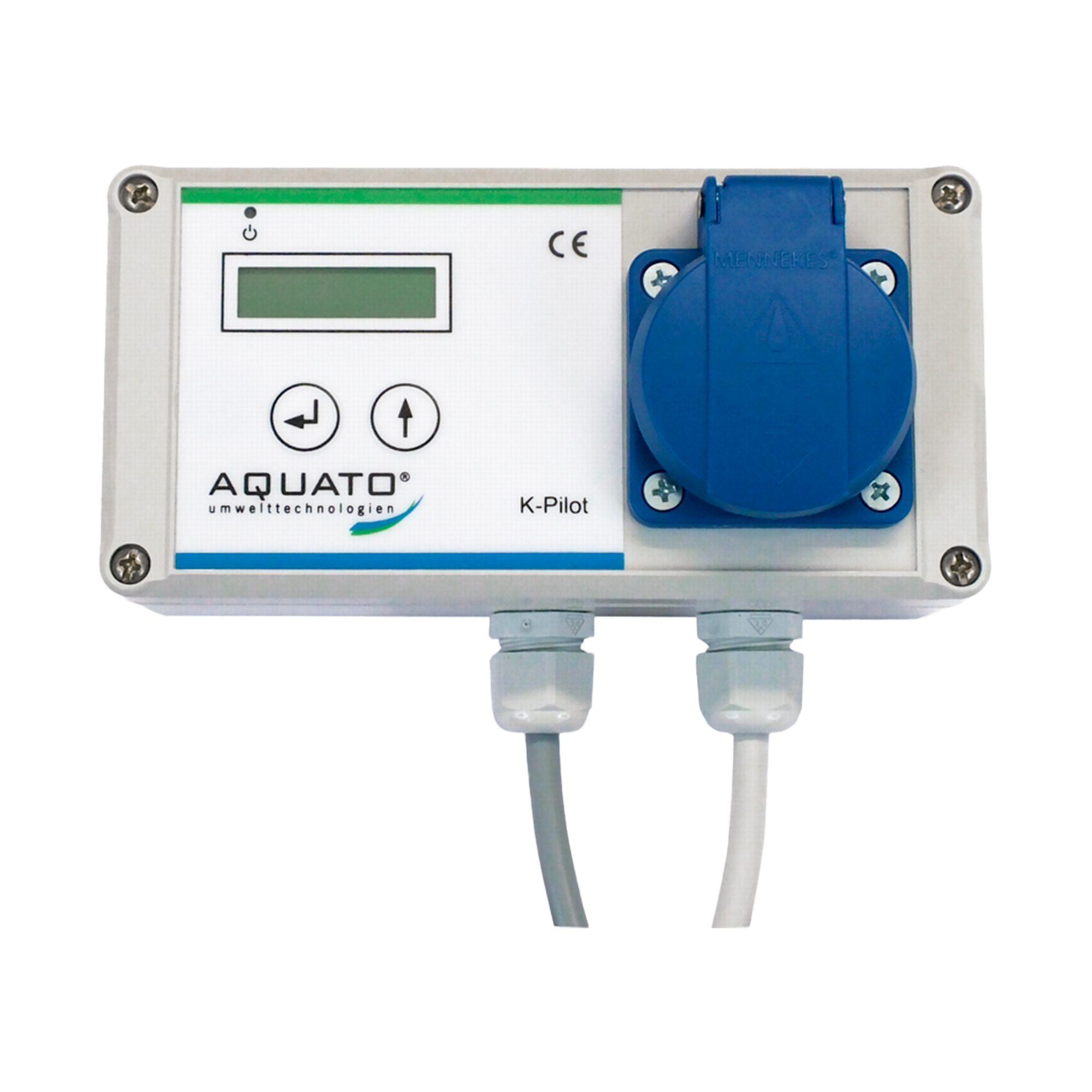

- for DEWATEC fixed bed and moving bed compressor systems
- plug-in control, 2-line text display
- integrated power failure message
- power monitoring of the compressor
- software update possible
- can also be used for systems from other manufacturers
- AQUATO® menu structure

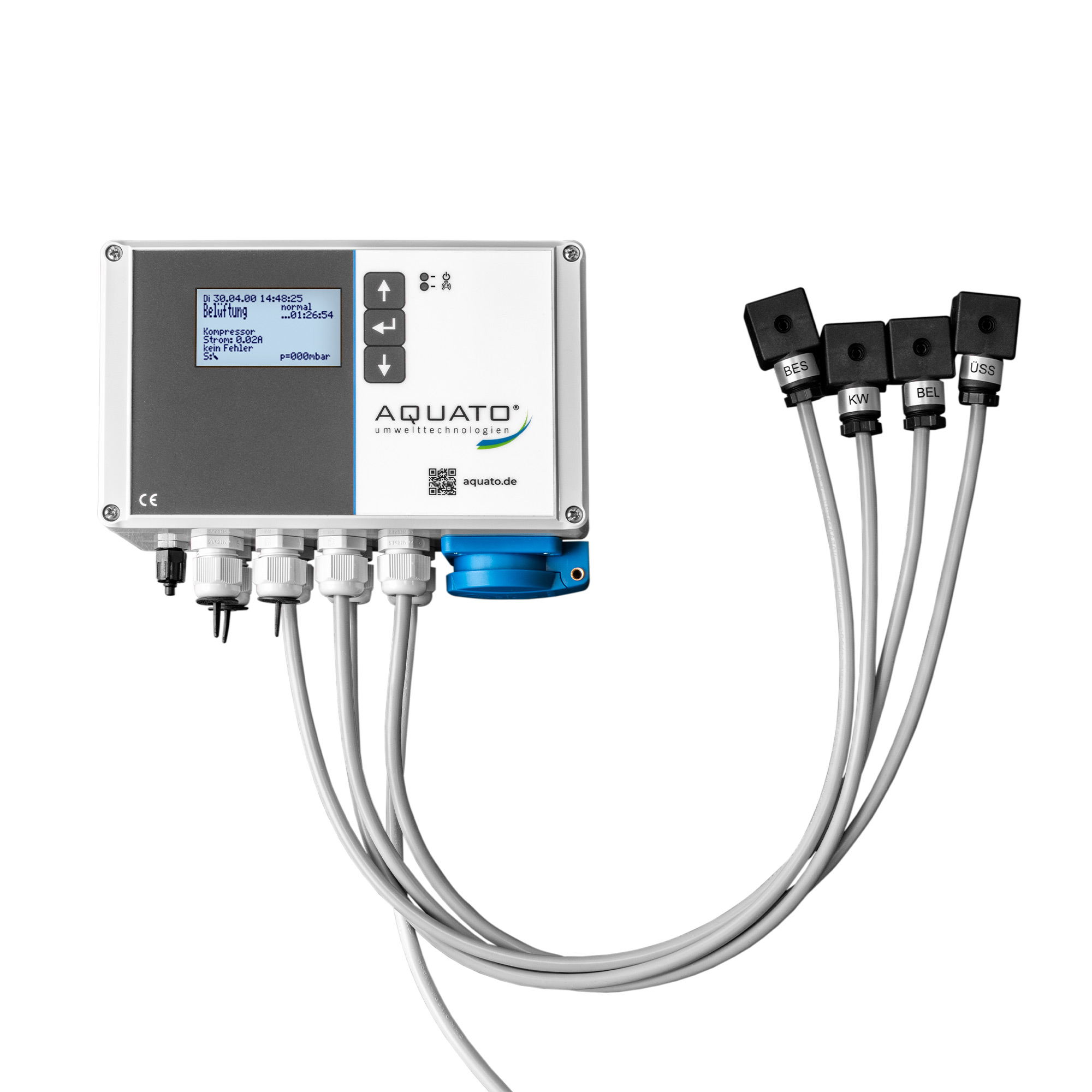

- for AQUATO SBR, fixed bed and moving bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- AQUATO® menu structure
- for AQUATO SBR, fixed bed and moving bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- ready-to-connect sewage treatment plant control system for SBR, SSB®, fixed bed and moving bed systems for possible treatment classes Carbon degradation (C) and nitrification (N), denitrification (D), hygienisation (+H), phosphate elimination (+P) and carbon dosing, also in combination with proven AQUATO® menu.
- direct WiFi connection for operation via smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- for use with AQUATO® rotary valve DV2 or solenoid valves
- power failure notification and power monitoring
- acoustic fault notification also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- built-in socket for connecting the compressor
- potential-free changeover contact
- internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
Protection class IP54
- ready-to-connect sewage treatment plant control system for SBR 2-pump systems from other manufacturers for possible treatment classes: carbon degradation (C), nitrification (N) and denitrification (D) with proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
acoustic fault notification - 2 inputs for float switches
- 4 relay outputs
- with 7-pin plug for system cable connection
- potential-free changeover contact
- internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
protection class IP54
- ModBus interface for expansion with AQUATO® add-on modules expandable with ProCloud
- ready-to-connect sewage treatment plant control system for SBR pump systems from other manufacturers for possible treatment classes: carbon degradation (C), nitrification (N) and denitrification (D) with proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
- acoustic fault notification
- 2 inputs for float switches
- 4 relay outputs
- with 7-pin plug for system cable connection
- potential-free changeover contact
- internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
protection class IP54
- ModBus interface for expansion with AQUATO® add-on modules
- ready-to-connect sewage treatment plant control system for SBR pump systems for possible treatment classes: carbon degradation (C), nitrification (N), denitrification (D), hygienisation (+H), phosphate elimination (+P) and carbon dosing, also in combination proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
- acoustic fault notification
- also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- with 7-pin and 4-pin plug for system cable connection
potential-free changeover contact - Internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
protection class IP54 - ModBus interface for expansion with AQUATO® add-on modules expandable with ProCloud module for remote data access
- ready-to-connect sewage treatment plant control system for SBR pump systems,for possible treatment classes: carbon degradation (C), nitrification (N) and denitrification (D) with proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
- acoustic fault notification also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- with 7-pin plug for system cable connection
- potential-free changeover contact internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
protection class IP54
- ModBus interface for expansion with AQUATO® add-on modules expandable with ProCloud module for remote data acces
- for AQUATO® SSB®-compressor units
- plug-in control
- 2-line text display
- integrated power failure message
- current monitoring of compressor and valve
- discharge class C and D
- can also be used for plants of other manufacturers
- for AQUATO® SSB® compressor units
- plug-in control
- 2-line text display
- integrated power failure message
- current monitoring of compressor and valve
- discharge class C and D
- can also be used for plants of other manufacturers
- with float switch connection

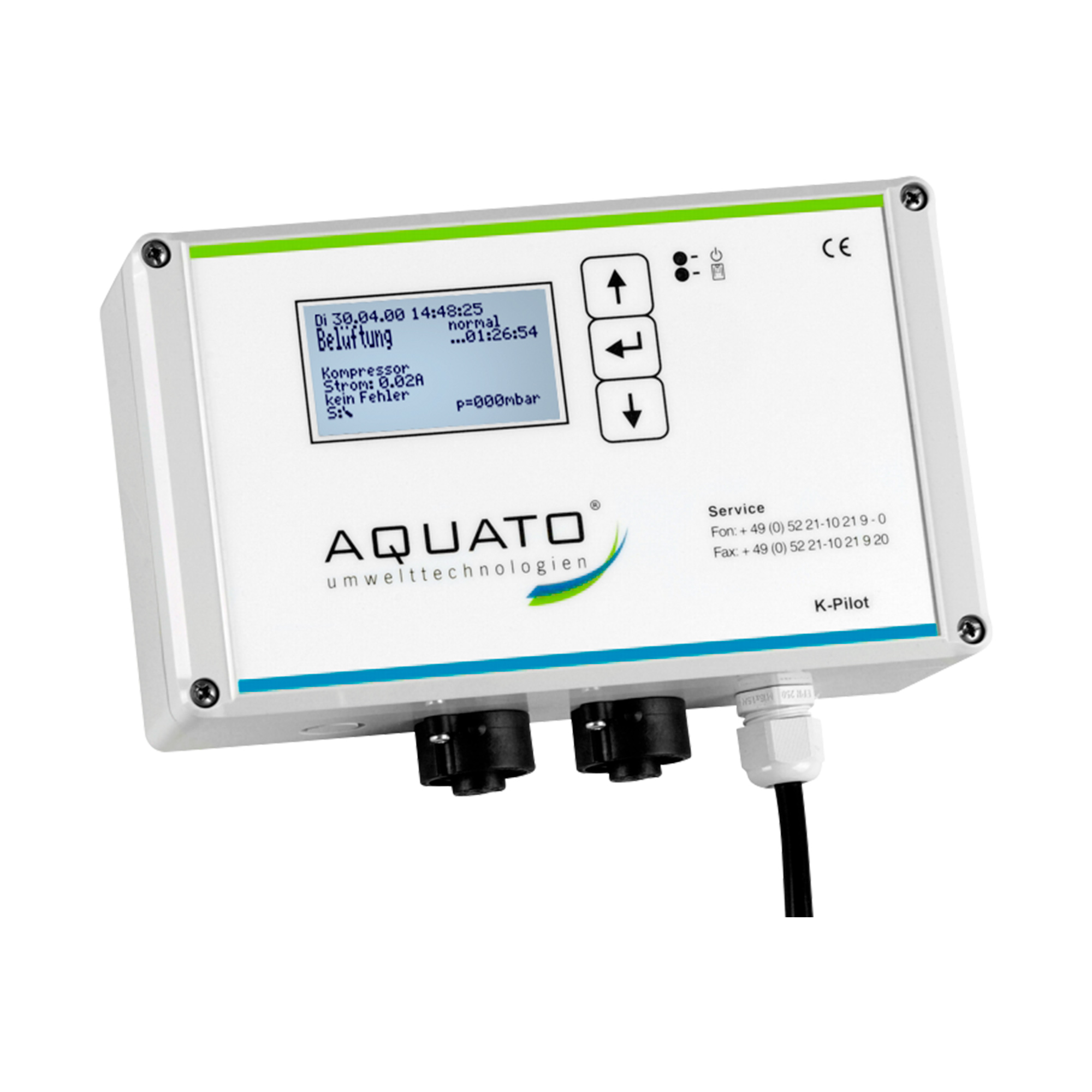

- AQUATO® menu structure
- universal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds
- 2 float switch inputs
- 6 individually assignable outputs
- easy connection of existing valves and aggregates
- internal thermostat for control of a cabinet ventilation or heating system
- power failure message as well as current & pressure monitoring
- drain class C, N, D, D+P, D+H, D+P+H
- connection of an additional high water detector
- also suitable for plants of other manufacturers
- 2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,
dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
- for plants with hygienization, phosphate elimination and gastronomic plants
- drainage class C, D, D+P, D+H
- plug-in pump control
- graphic display
- integrated power failure message
- current monitoring of all pumps
- simple and self-explanatory menu navigation
AQUATO® TOPSELLER
- AQUATO® menu structure
- for AQUATO SBR, fixed bed and moving bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- AQUATO® menu structure
- universal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds
- 2 float switch inputs
- 6 individually assignable outputs
- easy connection of existing valves and aggregates
- internal thermostat for control of a cabinet ventilation or heating system
- power failure message as well as current & pressure monitoring
- drain class C, N, D, D+P, D+H, D+P+H
- connection of an additional high water detector
- also suitable for plants of other manufacturers
- 2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,
dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
- submersible up to 12 m deep
- suitable for pumping clean, chemically neutral water
- for use in cisterns and rainwater tanks
- integrated pressure switch for automatically switching the pump on and off
- integrated floating switch as dry-run protection
- housing is supplied without lock, key and without base plate for the compressor
- including fastening set
- connection pipe sideways G 1" male
- without connection cable
