- The counterweight is used to weigh down the cable and provide a pivot point for the float switch. Retro fitment is possible.
- Resistant to water, wastewater, oils and fats, many acids and bases.
- for the fastening of the floating switch at HT-sewage pipe DN50
- can also be used for distribution tap
- prepared for M20 cable gland
- can also be used for distribution tap
- prepared for M20 cable gland
- material: polypropylene and barium sulfate
- dimensions (Ø × H, in mm): 50 × 59
- clamping range (mm): 6.5 – 10.7
- operating voltage up to 230 V, 10 (8) A
- switching hysteresis 75/90 mm
- ends stripped, with ferrules
- top on/to drain
- operating voltage up to 230 V, 10 (8) A
- switching hysteresis 75/90 mm
- ends stripped, with ferrules
- top on/to drain
- operating voltage up to 230 V, 10 (8) A
- switching hysteresis 75/90 mm
- ends stripped, with ferrules
- top on/to drain
- operating voltage up to 230 V, 10 (8) A
- switching hysteresis 75/90 mm
- ends stripped, with ferrules
- top on/to drain
- operating voltage up to 230 V, 10 (8) A
- switching hysteresis 75/90 mm
- ends stripped, with ferrules
- top on/to drain
- type: closer
- operating voltage up to 230 V/0.1–5 A
- minimum switching capacity 1 mA at 4 V DC

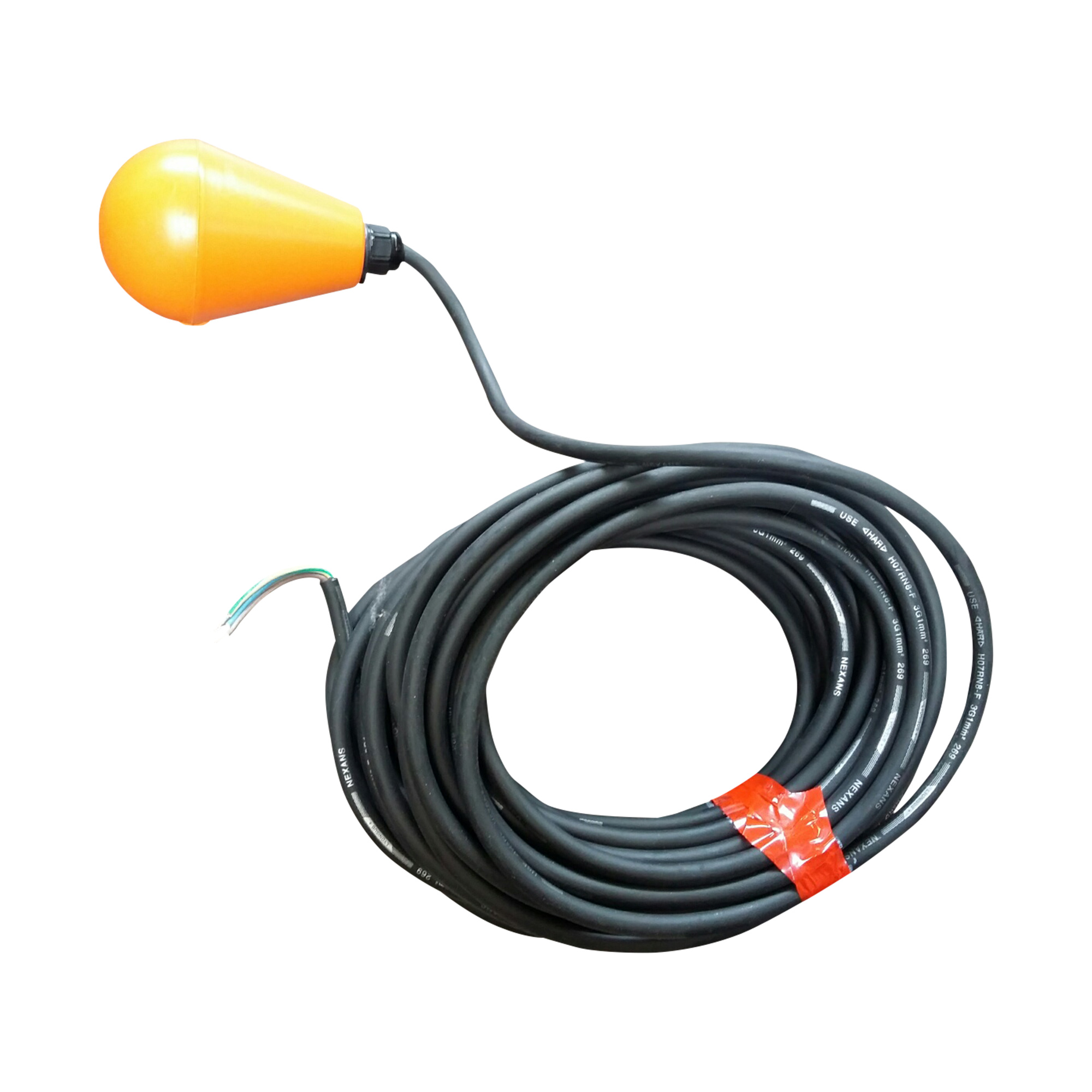

- with bulb (weight 380 g)
- cable length: 30 m
- switching hysteresis: 20 mm
- type: closer
- operating voltage up to 230 V/ 0.1–5 A
- minimum switching capacity 1 mA at 4 V DC

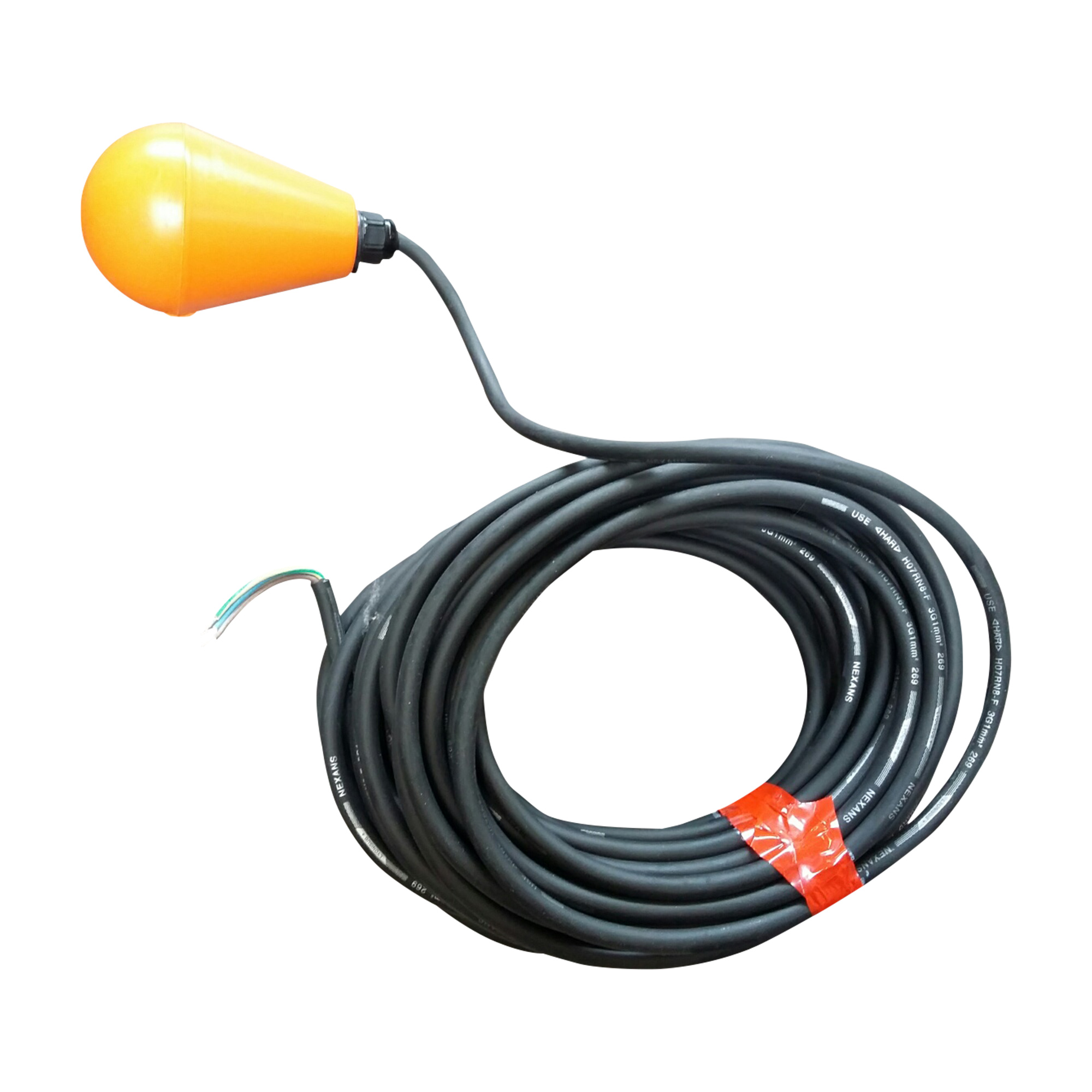

- with bulb(weight 380 g)
- cable length: 15 m
- switching hysteresis: 20 mm
AQUATO® TOPSELLER
- AQUATO® menu structure
- for AQUATO SBR, fixed bed and moving bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- AQUATO® menu structure
- universal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds
- 2 float switch inputs
- 6 individually assignable outputs
- easy connection of existing valves and aggregates
- internal thermostat for control of a cabinet ventilation or heating system
- power failure message as well as current & pressure monitoring
- drain class C, N, D, D+P, D+H, D+P+H
- connection of an additional high water detector
- also suitable for plants of other manufacturers
- 2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,
dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
- submersible up to 12 m deep
- suitable for pumping clean, chemically neutral water
- for use in cisterns and rainwater tanks
- integrated pressure switch for automatically switching the pump on and off
- integrated floating switch as dry-run protection
- housing is supplied without lock, key and without base plate for the compressor
- including fastening set
- connection pipe sideways G 1" male
- without connection cable
