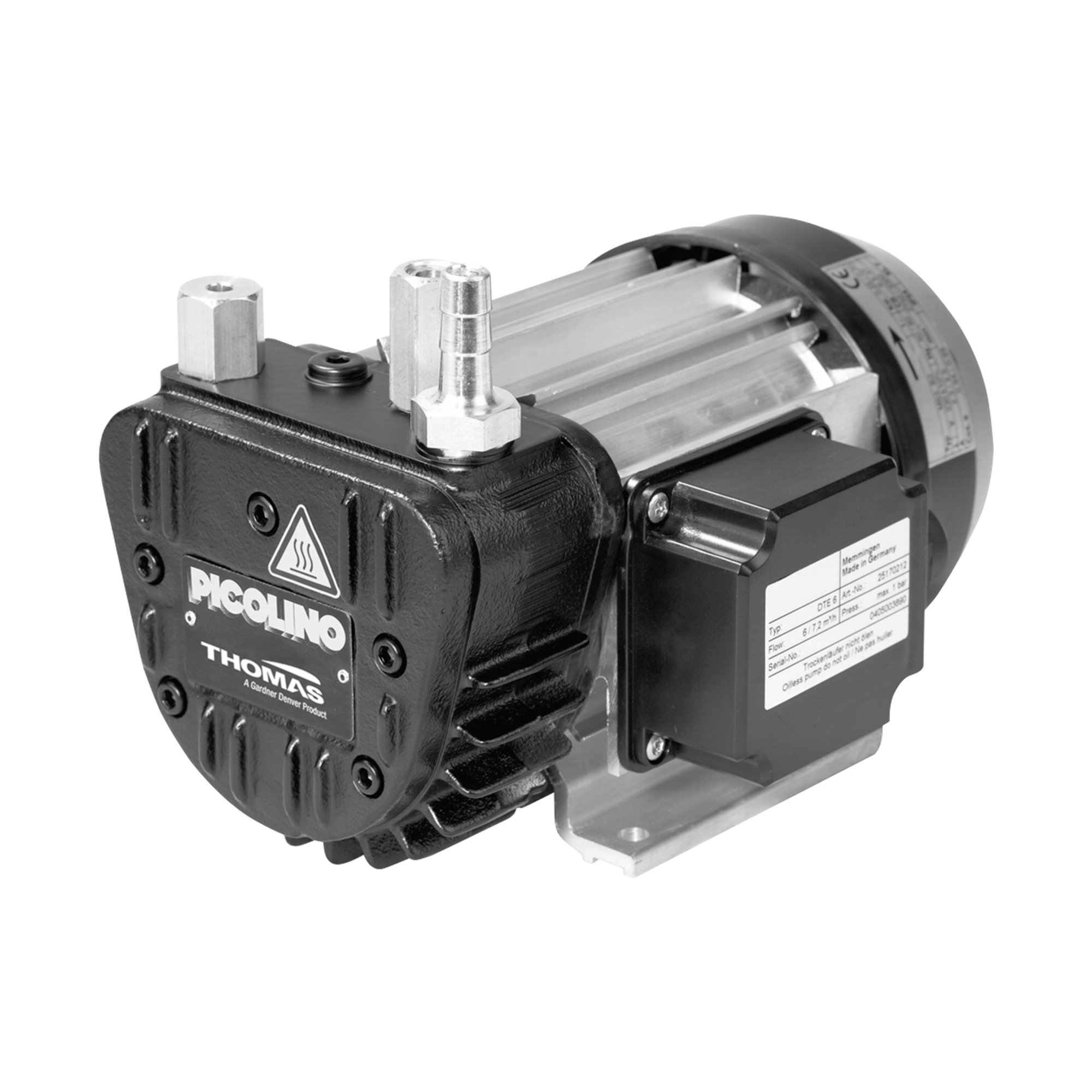

Rotary vane compressor DTE 6
Product number:
100754
Weight:
7.5 kg
Available stock:
1
Downloads
Product information "Rotary vane compressor DTE 6"
- insulation class: F
- protection class: IP 54
- with integrated thermo sensor(automatic on/off)
- dry-running-air-cooled
- including corrosion protected rotor
- micro fine filter on suction side
- intake silencer
- pressure relief valve
- hose connection
- maximal pressure: 1,0 bar
- airflow rate: 6/7.2 m³/h
Properties "Rotary vane compressor DTE 6"
| Air volume flow (l/min): | 100 |
|---|---|
| Length (mm): | 224 |
| Maximum counterpressure (mbar): | 1000 |
| Noise level (dBA): | 60 |
| Output (KW): | 0,25 |
| Voltage: | 230V/50Hz |
| height (mm): | 157 |
| operating point (mbar): | 500 |
| width (mm): | 156 |
Data according to manufacturer. Errors and changes reserved.
