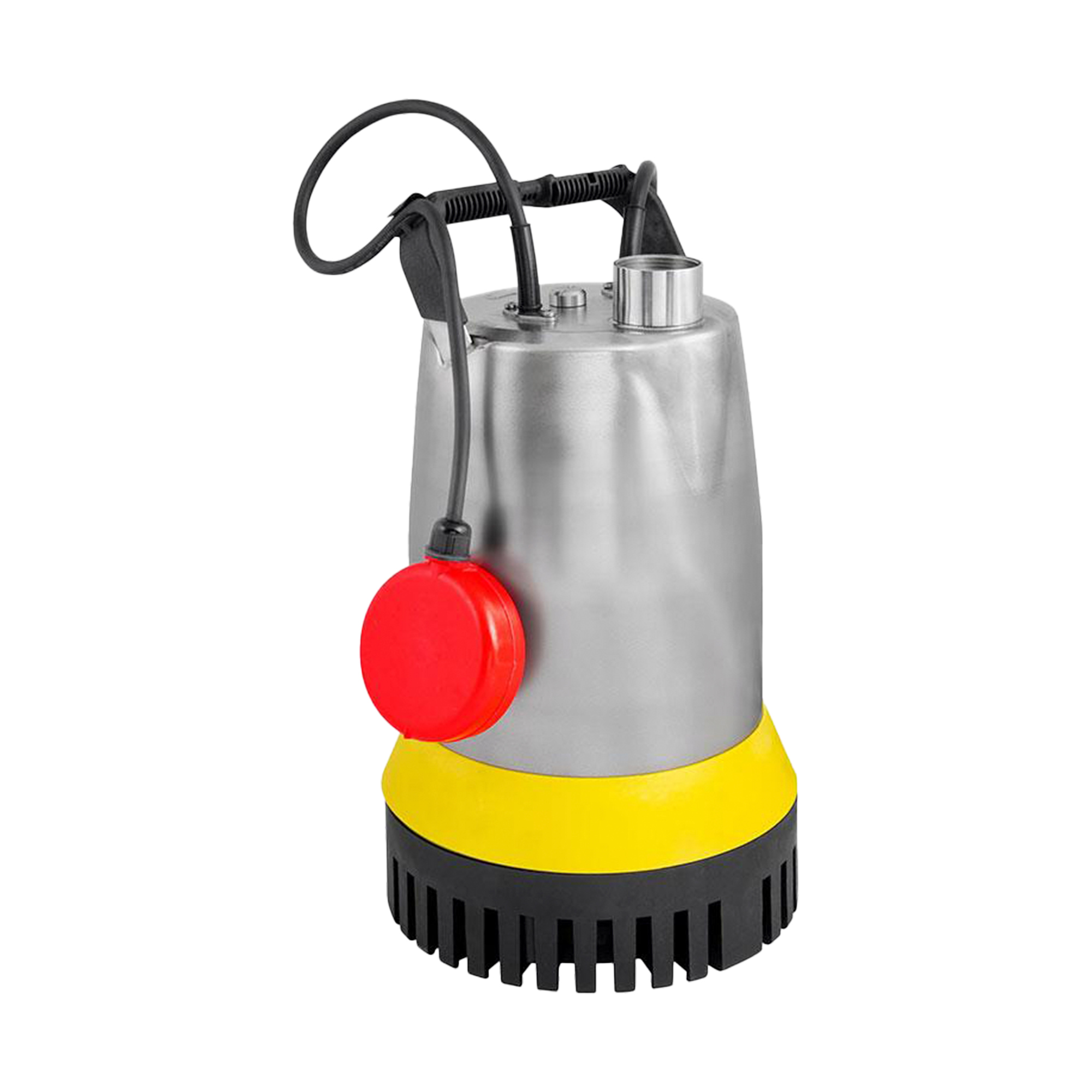

Submersible drainage pump Multidrain UV 310-1S; 1 kW; 230 V; 10 m cable and plug; Manufactured by Pentair Jung Pumpen
Product number:
140158
Weight:
20 kg
Product information "Submersible drainage pump Multidrain UV 310-1S; 1 kW; 230 V; 10 m cable and plug; Manufactured by Pentair Jung Pumpen"
- for pumping domestic wastewater without faeces and rainwater
- max. delivery head 10 mWS, max. flow rate 24.5 m³/h
- integrated, adjustable float switch
- volute with 10 mm free passage and strainer
- stainless steel housing, pressure connection 1½" and vertical discharge
- dry-running safe, double mechanical seal and oil chamber
- speed 2900 1/min, motor protection Winding thermostat
- weight: 20 kg
Properties "Submersible drainage pump Multidrain UV 310-1S; 1 kW; 230 V; 10 m cable and plug; Manufactured by Pentair Jung Pumpen"
| Cable (m): | 10 |
|---|---|
| Floating switch: | Ja |
| Free passage (mm): | 10 |
| Maximum discharge flow (m³/h): | 24,5 |
| Maximum discharge head (m): | 10 |
| Output (KW): | 1,3 |
| Rated current (A): | 5,8 |
| Voltage: | 230 V/50 Hz |
| discharge (''): | 1 1/2 |
Data according to manufacturer. Errors and changes reserved.
