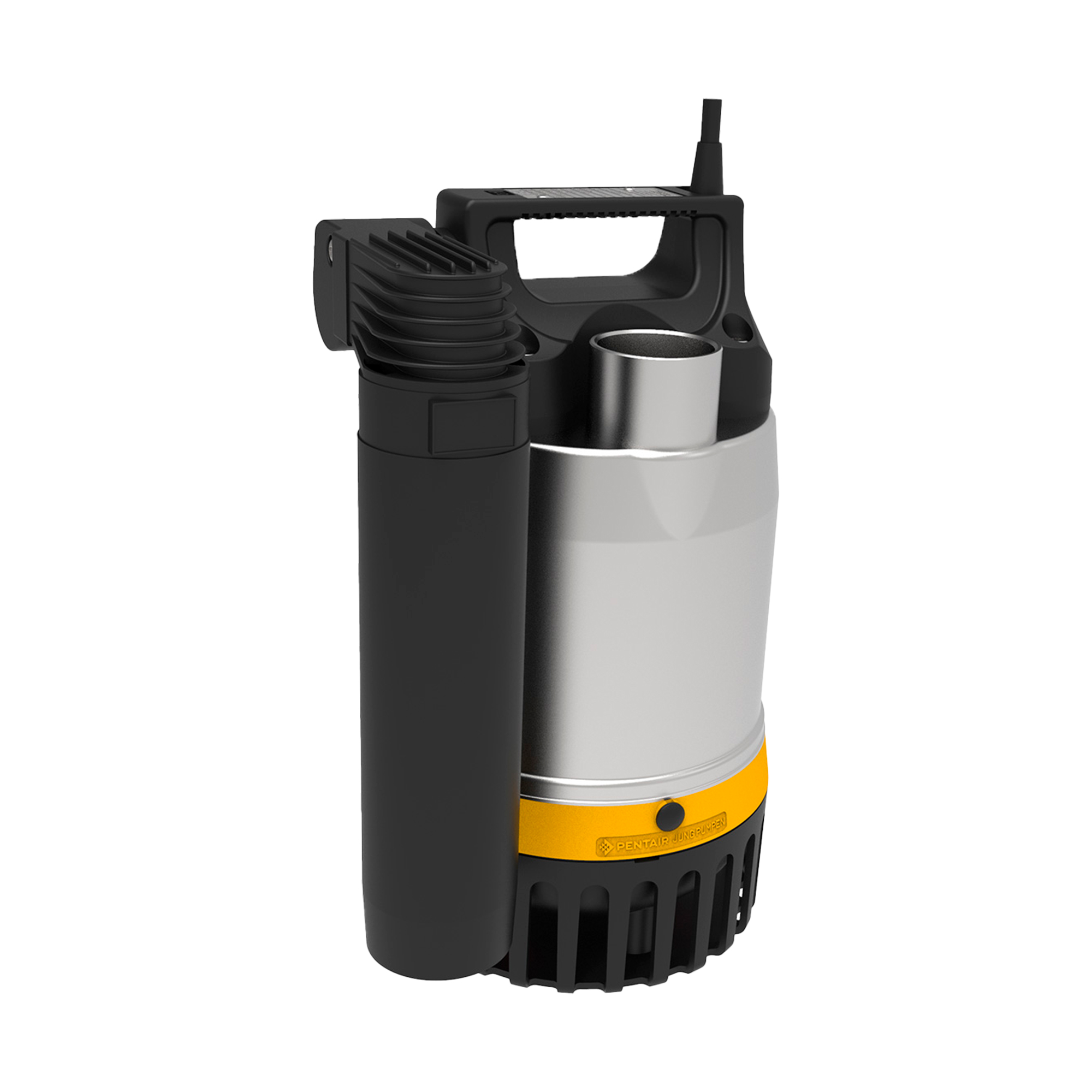

Submersible drainage pump Multidrain UV 3SF; 10 m cable and plug; Manufactured by Pentair Jung Pumpen
Product number:
102759
Weight:
5.5 kg
Available stock:
1
Product information "Submersible drainage pump Multidrain UV 3SF; 10 m cable and plug; Manufactured by Pentair Jung Pumpen"
- for pumping domestic wastewater without faeces and rainwater
- max. delivery head 7 mWS
- max. flow rate 7 m³/h
- integrated, close-fitting level switch
- can be used in particularly narrow shafts from 220 mm diameter
- volute with 10 mm free passage and removable strainer
- flushing openings for self-cleaning of the pump sump
- stainless steel housing, pressure connection 1¼" and vertical discharge
- hose nozzle and integrated non-return flap
- protection class IP68, longitudinally watertight moulded cable entry
- dry-running safe, radial shaft seals on the media side with oil chamber
- speed 2900 1/min, motor protection winding thermostat
Properties "Submersible drainage pump Multidrain UV 3SF; 10 m cable and plug; Manufactured by Pentair Jung Pumpen"
| Cable (m): | 10 |
|---|---|
| Floating switch: | Ja |
| Free passage (mm): | 10 |
| Maximum discharge flow (m³/h): | 6,8 |
| Maximum discharge head (m): | 7 |
| Output (KW): | 0,34 |
| Rated current (A): | 1,5 |
| Voltage: | 230 V/50 Hz |
| discharge (''): | 1 1/4 |
Data according to manufacturer. Errors and changes reserved.
