AQUATO® HIGHLIGHT

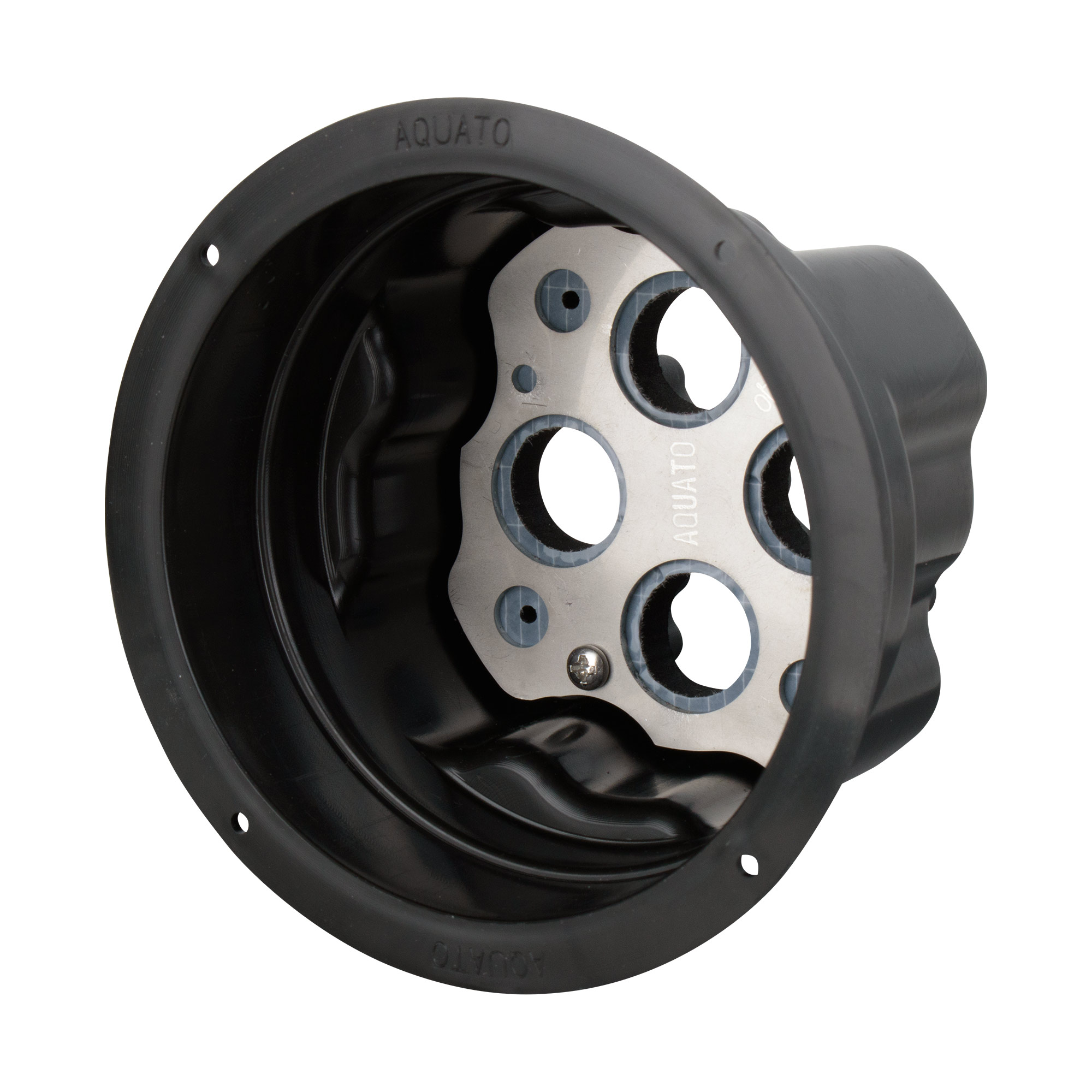

Plastic end piece DN100 for socket or spigot end
for use in wall and cabinetsenables pressureless, airtight and removable
passage of up to 4 air hoses and 2 cables
maximum possible:
- 4x 16 mm (outer Ø 21 mm)
- 3x 16 mm + 1x 19 mm (outer diameter 25 mm)
- additional 4 openable ducts Ø 16 mm
for cables up to max. Ø 9 mm - includes 2 rubber plugs for unused openings
and rubber ring as seal for pipe end Ø 110 mm

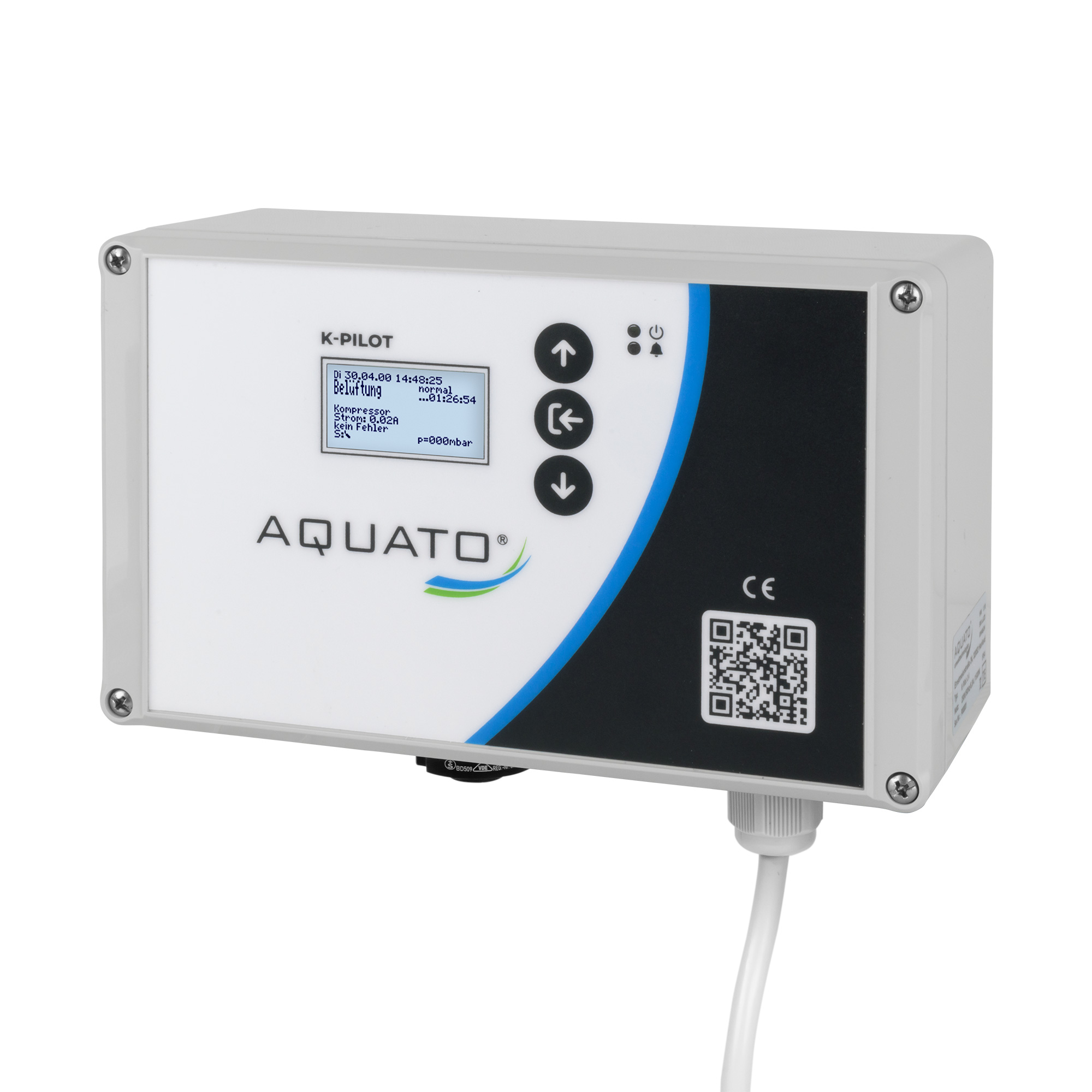

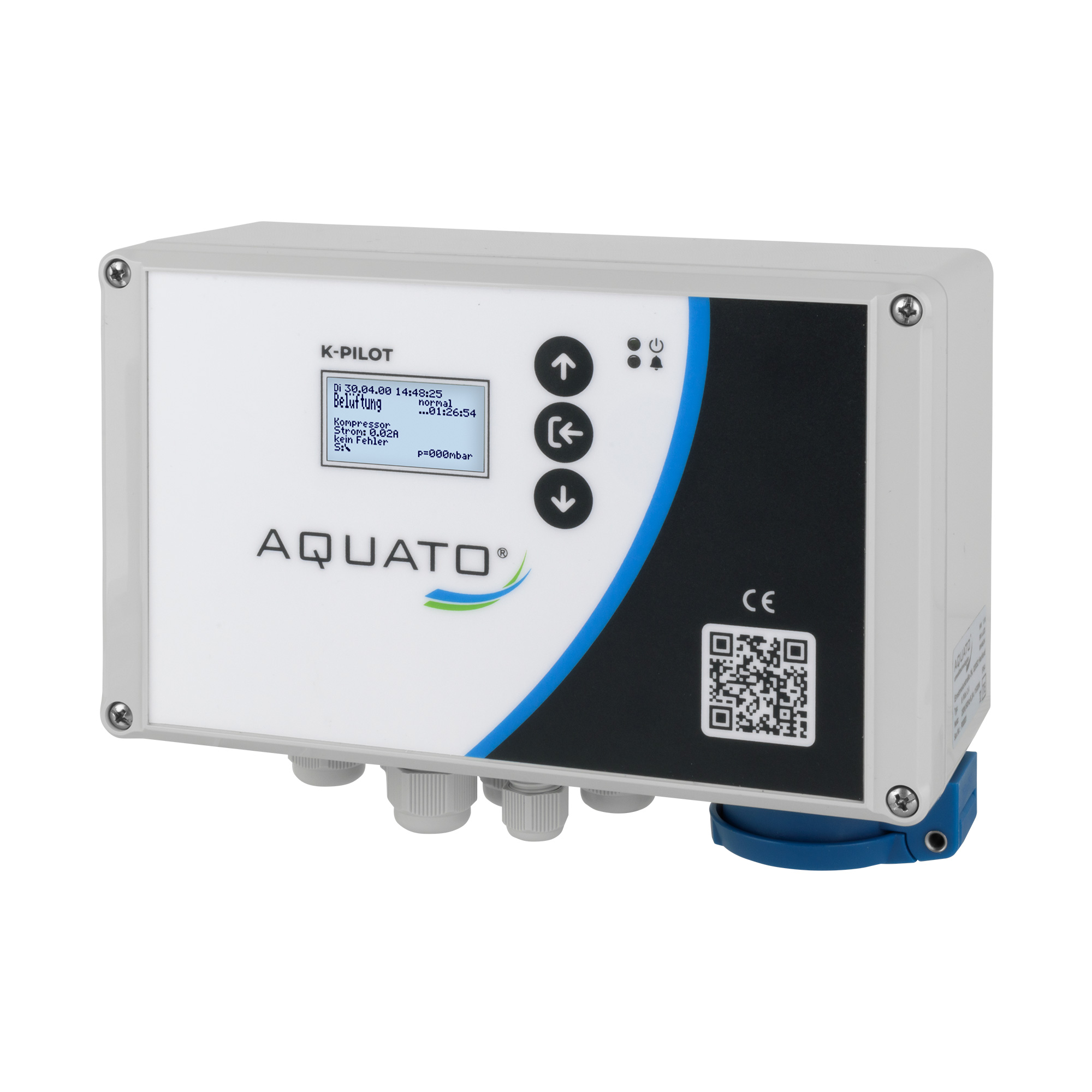

Ready-to-connect sewage treatment plant control system
for SBR, SSB®, fixed bed and fluidised bed systems
for possible treatment classes Carbon degradation (C) and nitrification (N), denitrification (D), hygienisation (+H), phosphate elimination (+P) and carbon dosing, also in combination
Proven AQUATO® menu.
- Direct WiFi connection for operation via smartphone, tablet or PC
- Illuminated graphic display and 3-button operation
- For use with AQUATO® rotary valve DV2 or solenoid valves
- Power failure notification and power monitoring
- Acoustic fault notification Also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- Built-in socket for connecting the compressor
- Potential-free changeover contact
- Internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
Protection class IP 54
Ready-to-connect sewage treatment plant control system for SBR 2-pump systems from other manufacturers for possible treatment classes: carbon degradation (C), nitrification (N) and denitrification (D)
Proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
acoustic fault notification - 2 inputs for float switches
- 4 relay outputs
- with 7-pin plug for system cable connection
- potential-free changeover contact
- internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
Protection class IP 54
ModBus interface for expansion with AQUATO® add-on modules
Expandable with ProClou
Ready-to-connect sewage treatment plant control system for SBR pump systems from other manufacturers for possible treatment classes: carbon degradation (C), nitrification (N) and denitrification (D)
Proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
- acoustic fault notification
- 2 inputs for float switches
- 4 relay outputs
- with 7-pin plug for system cable connection
- potential-free changeover contact
- internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
Protection class IP 54
ModBus interface for expansion with AQUATO® add-on modules
Ready-to-connect sewage treatment plant control system for SBR pump systems for possible treatment classes: carbon degradation (C), nitrification (N), denitrification (D), hygienisation (+H), phosphate elimination (+P) and carbon dosing, also in combination proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
- acoustic fault notification
- also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- with 7-pin and 4-pin plug for system cable connection
potential-free changeover contact - Internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
Protection class IP 54
ModBus interface for expansion with AQUATO® add-on modules
Expandable with ProCloud module for remote data access
Ready-to-connect sewage treatment plant control system for SBR pump systems,for possible treatment classes: carbon degradation (C), nitrification (N) and denitrification (D)
Proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure notification and power monitoring
- acoustic fault notification also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- with 7-pin plug for system cable connection
- potential-free changeover contact internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
Protection class IP 54
ModBus interface for expansion with AQUATO® add-on modules
Expandable with ProCloud module for remote data acces
- ready-to-connect sewage treatment plant control
- for SBR, SSB®, fixed bed and fluidised bed systems
- for possible treatment classes Carbon degradation (C) and nitrification (N) denitrification (D), hygienisation (+H), phosphate elimination (+P) and carbon dosing, also in combination proven AQUATO® menu
- WiFi direct for operation with smartphone, tablet or PC
- illuminated graphic display and 3-button operation
- power failure message and power monitoring
- acoustic fault message
- also suitable for systems from other manufacturers
- 2 inputs for float switches
- 4 relay outputs
- built-in socket for connecting the compressor
- potential-free changeover contact
- internal thermostat
- ISO housing, W×H×D (in mm): 200 × 120 × 80
protection class IP54 - cable entry via cable glands with sealing plugs
- Modbus interface for expansion with AQUATO® add-on modules
Expandable with ProCloud module for remote data access
- anschlussfertige Kläranlagen-Steuerung montiert auf Wandkonsole
- für SBR-, SSB®-, Festbett- und Wirbelschwebebettanlagen
- für mögliche Reinigungsklassen Kohlenstoffabbau (C), sowie Nitrifikation (N), Denitrifikation (D), Hygienisierung (+H), Phosphateliminierung (+P) und Kohlenstoffdosierung, auch in Kombination bewährtes AQUATO® Menü
- WiFi-direct zur Bedienung mit Smartphone, Tablet oder PC
- beleuchtetes Grafik-Display und 3-Tastenbedienung
- Stromausfallmeldung sowie Stromüberwachung
- akustische Störungsmeldung
- auch für Anlagen anderer Hersteller geeignet
- 2 Eingänge für Schwimmerschalter
- 4 Relais-Ausgänge
- Einbausteckdose zum Anschluss des Verdichters
- potentialfreier Wechsler-Kontakt
- internes Thermostat
- ISO-Gehäuse, B×H×T(in mm): 200 × 120 × 80
Schutzart IP54 - Leitungseinführung über Kabelverschraubungen mit Verschlussstopfen
- Modbus-Schnittstelle zur Erweiterung mit AQUATO®-Zusatzmodulen
erweiterbar mit ProCloud Modul zur Datenfernwirkung
- inkl:
- angeschlossenes Drehventil
- Modbus-Anschluss 24 V DC
- mit integrierter Steuerelektronik
- Drucküberwachung bis 500 mbar
- Schutzart IP54
- Luft-Eingang Ø 19 mm
- 4 Luft-Ausgänge mit Schlauchtülle Ø 16/19 mm
- Konsole für kompakte Aufstellung
Mounting bracket
Mounting for DV2 rotary valve
W×H×D (in mm): 80 × 80 × 3
Includes:
Mounting hardware
- Steckplatine für die K-Pilot 2.4 als Nachrüstung
- Wekzeuglose Montage
- Datenübertragung über das GSM Band/ LTE-NB
- Verbindung zur ProCloud zur Datenfernwirkung
- inklusive:
- geräteinterne Antenne
- Datenkarte für das GSM Netz
- for K-Pilot 2.4 control unit
- MBUS connection
- Cable length 1.5 m
- Integrated pressure measurement
- 4 air outlets
- for 16 mm hose
- plug-in rotary valve mounted in the holder
- for AQUATO® K-Pilot 2.4 sewage treatment plant control system Modbus connection 24 V DC with integrated control electronics Pressure monitoring up to 500 mbar
- air inlet Ø 19 mm
- 4 air outlets with hose nozzle Ø 16/19 mm
- fable length 1.50 m
- ISO housing, D×H (in mm): Ø 83 × 125
- protection class IP54
- plastic end piece DN100 as holder for socket or pointed end
- for use in wall cabinets and outdoor columns
- assembly screwed together
- for K-Pilot 2.4 control unit
- MBUS connection
- cable length 10 m
- integrated pressure measurement
- 4 air outlets
- for 16 mm hose
- AQUATO® menu structure
- for AQUATO SBR, fixed bed and fluidized bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- AQUATO® menu structure
- universal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds
- 2 float switch inputs
- 6 individually assignable outputs
- easy connection of existing valves and aggregates
- internal thermostat for control of a cabinet ventilation or heating system
- power failure message as well as current & pressure monitoring
- drain class C, N, D, D+P, D+H, D+P+H
- connection of an additional high water detector
- also suitable for plants of other manufacturers
- 2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,
dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
- submersible up to 12 m deep
- suitable for pumping clean, chemically neutral water
- for use in cisterns and rainwater tanks
- integrated pressure switch for automatically switching the pump on and off
- integrated floating switch as dry-run protection
- housing is supplied without lock, key and without base plate for the compressor
- including fastening set
- connection pipe sideways G 1" male
- without connection cable
