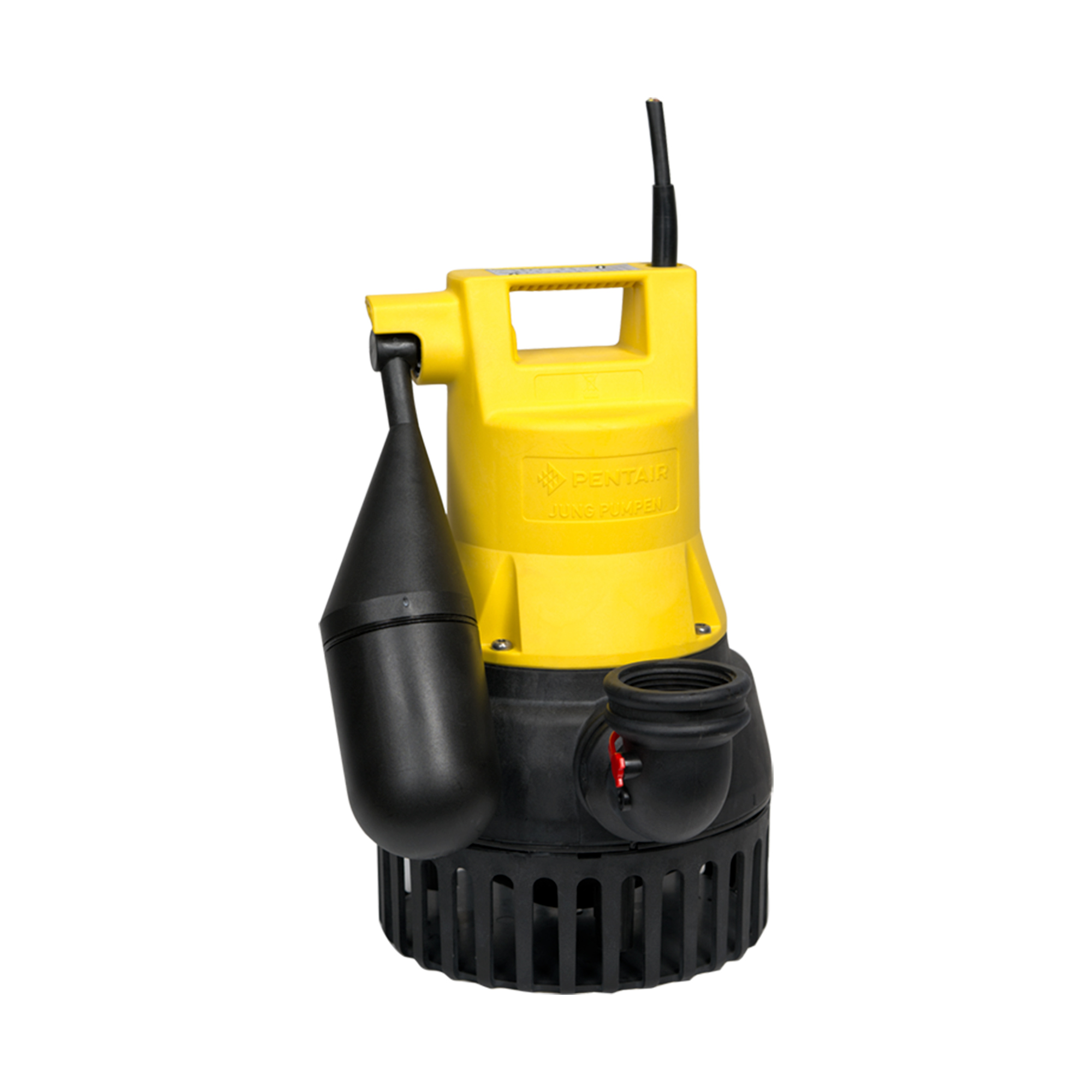

- complete package with U 5 KS submersible pump, 10 m cable and plug
- max. delivery head 8 m
- max. flow rate 11.5 m³/h
- robust plastic carrying basket 300 × 400 mm
- 12.5 m fire hose with C-coupling on both sides
- pump holder and clip for fixing the level switch
- personal protection adapter plug
- 30 mA
- pump set, ideal for pumping drainage and ground water
- can be used in drainage shafts with sand traps from 280 mm diameter
- max. delivery head 9 mWS
- max. flow rate 15.5 m³/h
- integrated level switch for narrow shafts
- cable end with connector housing and integrated H-0-A switch
- pump can be activated manually with float in OFF-position
- volute with 20 mm free passage and removable strainer
- pre-assembled with R32 non-return valve and stainless steel safety catch
- GRP housing, pressure connection hose nozzle d40 with vertical discharge
- protection class IP68, longitudinally watertight moulded cable entry
- dry-run safe, mechanical seal with oil chamber on the media side
- speed 2900 1/min, motor protection winding thermostat
- conveying data:
- Temperature: max. 40 °C
- Immersion depth: max. 10.0 m
- impeller: VORTEX impeller 1.4301
- shaft seal: double mechanical seal in oil seal
- sealed ball bearings
- discharge port G 2" female
- housing: 1.4301
- set of 5 bags
- for self-filling
- filled useful length: 72 cm
- weight including sand: 15 kg

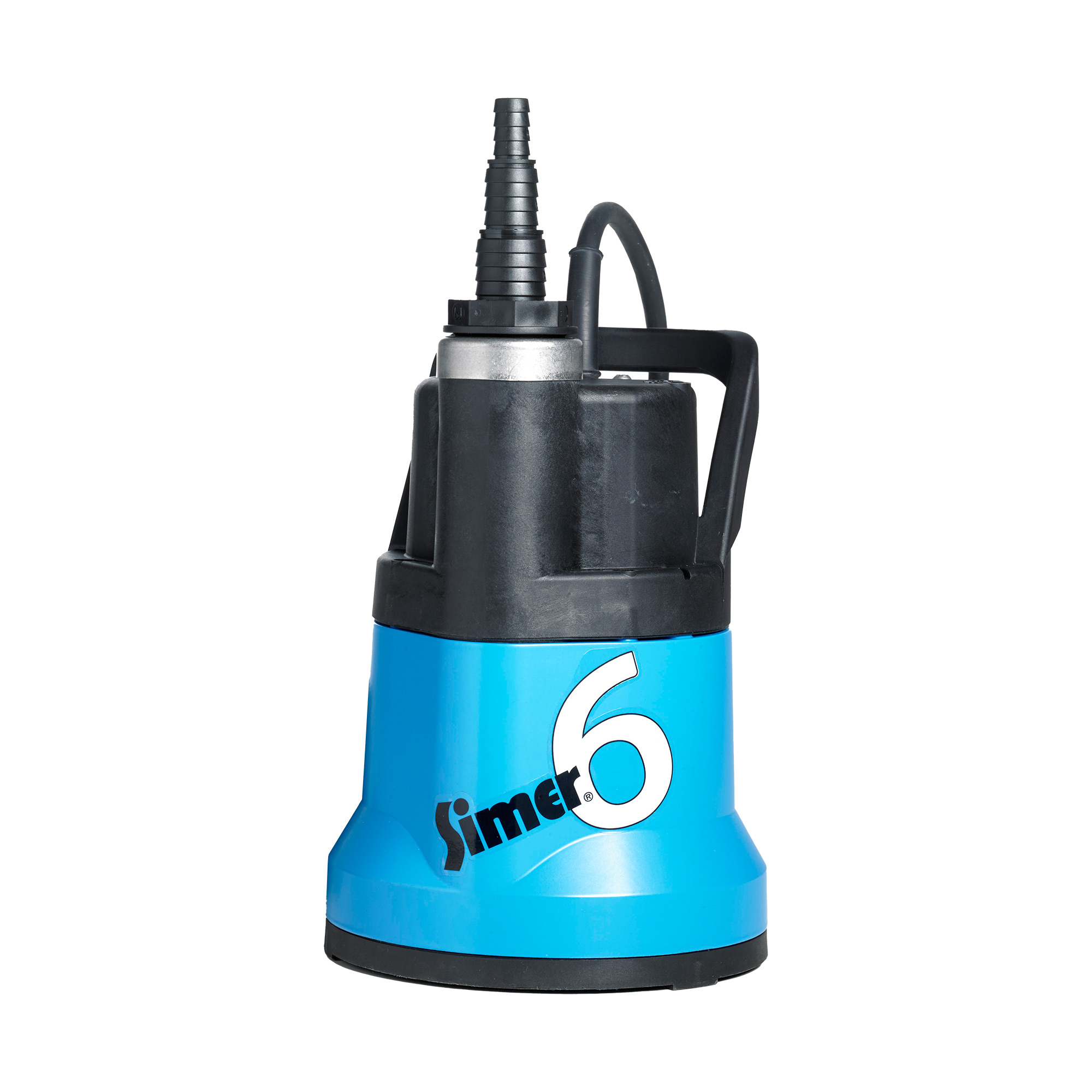

- for pumping slightly polluted water in mobile applications
- flat suction up to a water level of 2 mm
- max. delivery head 6.5 mWS
- max. flow rate 6 m³/h
- motor housing made of die-cast aluminium, pressure connection 1¼" with vertical discharge
- stepped hose nozzle and integrated non-return flap
- protection class IP68, dry-run safe, motor protection winding thermostat
- weight: 5.2 kg
- for pumping slightly polluted water in mobile applications
- flat suction up to a water level of 2 mm
- max. delivery head 6.5 mWS
- max. flow rate 6 m³/h
- integrated probe switch for automatic operation
- motor housing made of die-cast aluminium, pressure connection 1¼" with vertical discharge
- stepped hose nozzle and integrated non-return flap
- protection class IP68, dry-run safe, motor protection winding thermostat
- weight: 5.2 kg
- for pumping domestic wastewater without faeces and rainwater
- max. delivery head 10 mWS, max. flow rate 24.5 m³/h
- integrated, adjustable float switch
- volute with 10 mm free passage and strainer
- stainless steel housing, pressure connection 1½" and vertical discharge
- dry-running safe, double mechanical seal and oil chamber
- speed 2900 1/min, motor protection Winding thermostat
- weight: 20 kg
- for pumping domestic wastewater without faeces and rainwater
- max. delivery head 7 mWS
- max. flow rate 7 m³/h
- integrated, close-fitting level switch
- can be used in particularly narrow shafts from 220 mm diameter
- volute with 10 mm free passage and removable strainer
- flushing openings for self-cleaning of the pump sump
- stainless steel housing, pressure connection 1¼" and vertical discharge
- hose nozzle and integrated non-return flap
- protection class IP68, longitudinally watertight moulded cable entry
- dry-running safe, radial shaft seals on the media side with oil chamber
- speed 2900 1/min, motor protection winding thermostat
- for pumping domestic wastewater without faeces and drainage water
- special version for aggressive media up to max. 15% salinity
- max. delivery head 7 mWS
- max. flow rate 6.5 m³/h
- integrated level switch
- volute with 10 mm free passage and removable strainer
- GRP housing, pressure connection 1¼" (DN32) with horizontal discharge
- connection elbow with vent opening
- activatable flushing device for reducing deposits in pump sump
- protection class IP68, longitudinally watertight cable entry
- dry-running safe, mechanical seal and oil chamber on the media side
- speed 2900 1/min, motor protection winding thermostat
- for pumping domestic wastewater without faeces
- max. delivery head 7 mWS
- max. flow rate 6.5 m³/h
- integrated level switch
- volute with 10 mm free passage and removable strainer
- GRP housing, pressure connection 1¼" (DN32) with horizontal discharge
- connection elbow with vent opening
- activatable flushing device for reducing deposits in pump sump
- protection class IP68, longitudinally watertight cable entry
- dry-running safe, radial shaft seals on media side with oil chamber
- speed 2900 1/min, motor protection winding thermostat
- for pumping domestic wastewater without faeces
- max. delivery head 8 mWS
- max. flow rate 11 m³/h
- integrated level switch
- volute with 20 mm free passage and removable strainer
- GRP housing, pressure connection 1¼" (DN32) with horizontal discharge
- connection elbow with vent opening
- protection class IP68, longitudinally watertight cable entry
- dry-running safe, radial shaft seals on the media side with oil chamber
- speed 2900 1/min, motor protection winding thermostat
AQUATO® TOPSELLER
- AQUATO® menu structure
- for AQUATO SBR, fixed bed and moving bed systems as well as trickling filter systems and plant beds
- 4 cables with square plugs for the valves Possibility of pressure and current monitoring
- integrated power failure notification
- use for 3 or 4 valve manifolds
- optional connection of a clear water pump
- IoT capability/portal required
- AQUATO® menu structure
- universal control for SBR, SSB®, fixed bed, moving bed, trickling filter systems and plant beds
- 2 float switch inputs
- 6 individually assignable outputs
- easy connection of existing valves and aggregates
- internal thermostat for control of a cabinet ventilation or heating system
- power failure message as well as current & pressure monitoring
- drain class C, N, D, D+P, D+H, D+P+H
- connection of an additional high water detector
- also suitable for plants of other manufacturers
- 2nd compressor, additional compressor (only for aeration), charging pump, clear water pump, excess sludge pump, buffer pump/siphon,
dosing pump for effluent class D+P, UV lamp for effluent class D+H, additional timed relays for all free outputs
- submersible up to 12 m deep
- suitable for pumping clean, chemically neutral water
- for use in cisterns and rainwater tanks
- integrated pressure switch for automatically switching the pump on and off
- integrated floating switch as dry-run protection
- housing is supplied without lock, key and without base plate for the compressor
- including fastening set
- connection pipe sideways G 1" male
- without connection cable
